Analyze and debug Quarkus based AWS Lambda functions with X-Ray

Serverless architectures, like AWS Lambda, have emerged as a paradigm-shifting approach to building, fast, scalable and cost efficient applications. While Serverless architectures provide unparalleled flexibility, they also introduce new challenges in terms of monitoring and troubleshooting.

In this blog post, we explore how Quarkus integrates with AWS X-Ray and how using a Jakarta CDI Interceptor can keep your code clean while adding custom instrumentation.

Quarkus and AWS Lambda

Quarkus is a Java based framework tailored for GraalVM and HotSpot, which results in an amazingly fast boot time while having an incredibly low memory footprint. It offers near instant scale up and high density memory utilization, which can be very useful for container orchestration platforms like Kubernetes or Serverless runtimes like AWS Lambda.

Building AWS Lambda Functions can be as easy as starting a Quarkus project, adding the quarkus-amazon-lambda dependency, and defining your AWS Lambda Handler function.


An extensive guide on how to develop AWS Lambda Functions with Quarkus can be found in the official Quarkus AWS Lambda Guide.

Enabling X-Ray for your AWS Lambda functions

Quarkus provides out of the box support for X-Ray, but you will need to add a dependency to your project and configure some setting to make it work with GraalVM / native compiled Quarkus applications. Let’s first start with adding the quarkus-amazon-lambda-xray dependency.


Don’t forget to enable tracing for your Lambda function otherwise it won’t work. An example of doing that is by setting the tracing argument to active within your AWS CDK code.

function = Function.Builder.create(this, "feed-parsing-function")

After the deployment of your function and a function invocation you should be able to see the X-Ray traces from within the Cloudwatch interface. By default it will show you some basic timing information for your function like the initialisation and the invocation duration.

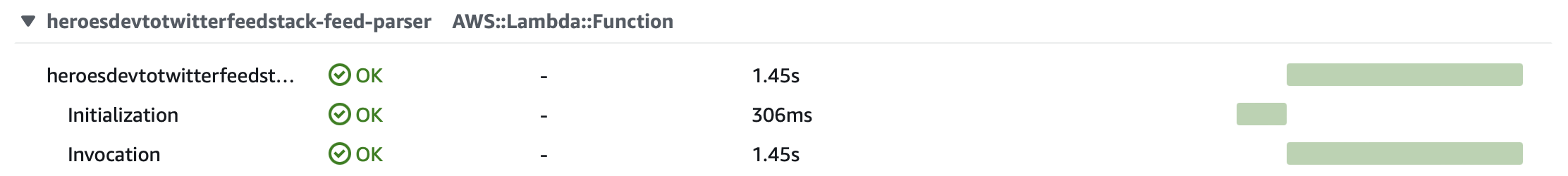

Minimal details for a trace in X-ray

Adding more instrumentation

Now that the dependencies are in place and tracing is enabled for our function we can enrich the traces in X-Ray by leveraging the X-Ray SDKs TracingIntercepter . For instance for the SQS and DynamoDB client you can explicitly set the intercepter inside the file.


After putting these properties in place, redeploying and executing the function, the TracingIntercepter will wrap around each API call to SQS and DynamoDB and store the actual trace information along side the trace.

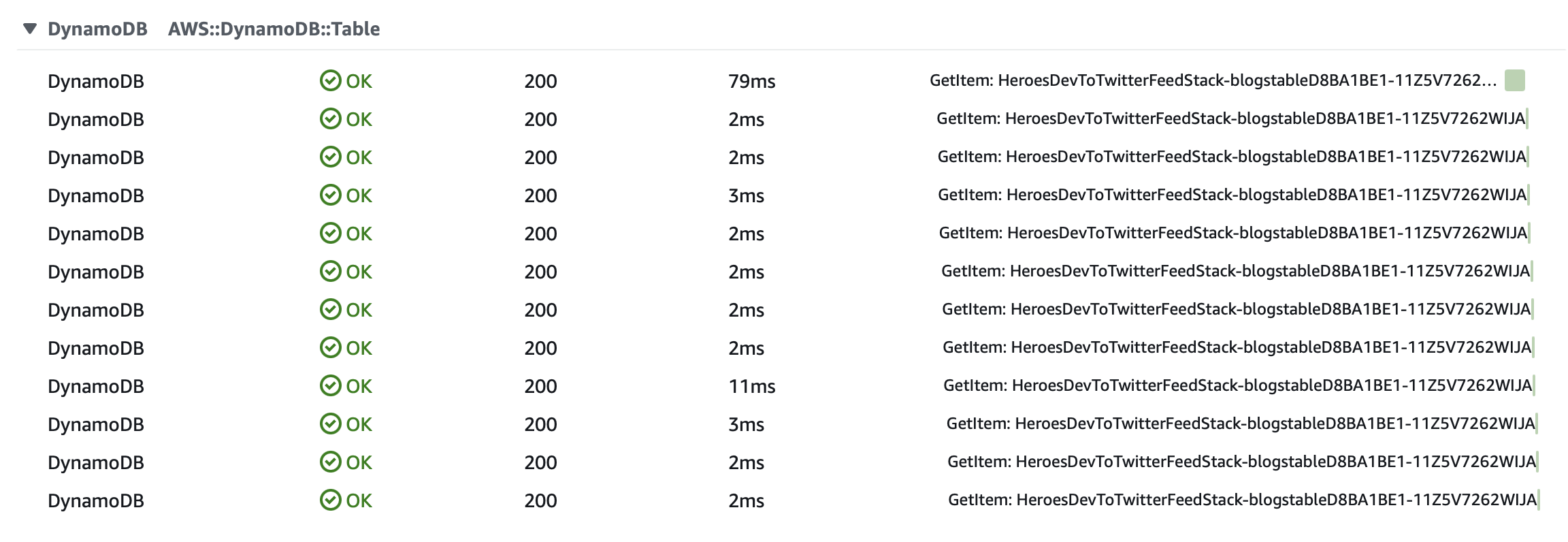

DynamoDB information for a trace in X-ray

This is very useful for debugging purposes as it will allow you to validate your code and check for any mistakes. Requests to AWS Services are part of the pricing model, so if you make a mistake in your code and you make too many calls it can become quite costly.

Custom subsegments

With the AWS SDK TracingInterceptor configured we get information about the calls to the AWS APIs. But what if we want to see information about our own code or remote calls to services outside of AWS?

The Java SDK for X-Ray supports the concept of adding custom subsegments to your traces. You can add subsegments to a trace by adding a few lines of code to your own business logic. You can see in the following code snippet.

  public void someMethod(String argument)  {
    // wrap in subsegment
    Subsegment subsegment = AWSXRay.beginSubsegment("someMethod");
    try {
      // Your business logic
    } catch (Exception e) {
      throw e;
    } finally {

Although this is trivial to do, it will become quit messy if you have a lot of methods you want to apply tracing to. This isn’t ideal and it would be better of we don’t have to mix our own code with the X-Ray instrumentation.

Quarkus and Jakarta CDI Interceptors

The Quarkus programming model is based on the Lite version of the Jakarta Contexts and Dependency Injection 4.0 specification. Besides dependency injection the specification also describes other features like:

  • Lifecycle Callbacks – A bean class may declare lifecycle @PostConstruct and @PreDestroy callbacks.
  • Interceptors – used to separate cross-cutting concerns from business logic.
  • Decorators – similar to interceptors, but because they implement interfaces with business semantics, they are able to implement business logic.
  • Events and Observers – Beans may also produce and consume events to interact in a completely decoupled fashion.

As mentioned, CDI Interceptors are used to separate cross-cutting concerns from business logic. As tracing is a cross-cutting concern this sounds like a great fit. Let’s take a look at how we can create an interceptor for our AWS X-Ray instrumentation.

We start with defining our interceptor binding which we will call XRayTracing. Interceptor bindings are intermediate annotations that may be used to associate interceptors with target beans.


import jakarta.annotation.Priority;
import jakarta.interceptor.InterceptorBinding;

import java.lang.annotation.Retention;

import static java.lang.annotation.RetentionPolicy.RUNTIME;

public @interface XRayTracing {

The next step is to define the actual Interceptor logic, the code that will add the additional X-Ray instructions for creating the subsegment and wrapping it around our business logic.


import com.amazonaws.xray.AWSXRay;
import jakarta.interceptor.AroundInvoke;
import jakarta.interceptor.Interceptor;
import jakarta.interceptor.InvocationContext;

public class XRayTracingInterceptor {

    public Object tracingMethod(InvocationContext ctx) throws Exception {
        AWSXRay.beginSubsegment("## " + ctx.getMethod().getName());
        try {
            return ctx.proceed();
        } catch (Exception e) {
            throw e;
        } finally {

An important part of the interceptor is the @AroundInvoke annotation, which means that this interceptor code will be wrapped around the invocation of our own business logic.

Now that we’ve defined both our interceptor binding and our interceptor it’s time to start using it. Every method that we want to create a subsegment for, can now be annotated with the @XRayTracing annotation.

public SyndFeed getLatestFeed() {
    InputStream feedContent = getFeedContent();
    return getSyndFeed(feedContent);

public SyndFeed getSyndFeed(InputStream feedContent) {
    try {
        SyndFeedInput feedInput = new SyndFeedInput();
        return XmlReader(feedContent));
    } catch (FeedException | IOException e) {
        throw new RuntimeException(e);

That’s looks much better. Pretty clean if I say so myself.

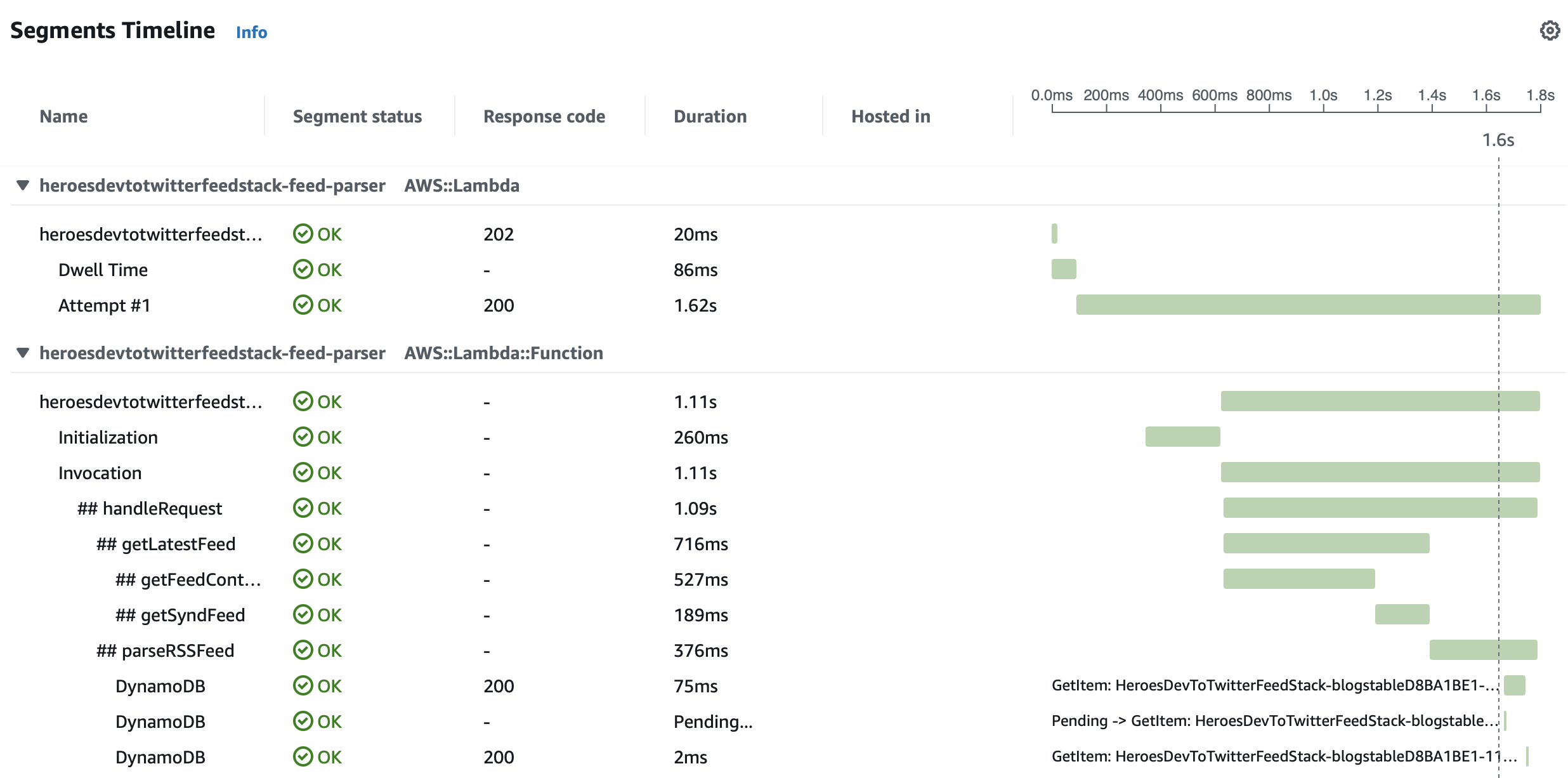

Based on the hierarchy of subsegments for a trace, X-Ray is able to show a nested tree structure with the timing information.

X-Ray trace with custom tracing information

Closing thoughts

The integration between Quarkus and X-Ray is quite simple to enable. The developer experience is really good out of the box with defining the interceptors on a per client basis. With the help of CDI interceptors you can keep your code clean without worrying too much about X-Ray specific code inside your business logic.

An alternative to building your own Interceptor might be to start using AWS PowerTools for Lambda (Java). Powertools for Java is a great way to boost your developer productivity. However, it can be used for more than X-Ray, so I’ll save it for another post.
